Anbaugeräte

HZM-810

27,990 €

Incl. 19% VAT

23,290 excl. VAT

The Agile all-rounder

The HZM 810 Profi wheel loader combines strong performance with precise control. Equipped with an Italian hydrostatic drive from the PWG brand and a proven Kubota engine, it impresses with its high efficiency, impressive power reserves and low fuel consumption.

Thanks to its compact design, the HZM 810 Profi is particularly maneuverable and flexible to use, ideal for demanding tasks in construction, agriculture and landscaping. The robust construction ensures longevity and reliability, even under the harshest operating conditions.

Heading 1

Heading 2

Heading 3

Heading 4

Heading 5
Heading 6

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.

Block quote

Ordered list

  1. Item 1
  2. Item 2
  3. Item 3

Unordered list

  • Item A
  • Item B
  • Item C

Text link

Bold text

Emphasis

Superscript

Subscript

Description
Your indispensable partner for a wide range of missions:

The HZM Wheel Loader 810 Profi combines performance, versatility and quality in a robust machine, ideal for work in construction, agriculture, gardening and landscaping, and commercial. Well thought out and manufactured to a high standard, the 810 Profi impresses across the board and offers the reliability that professionals need.

Top equipment for maximum efficiency:

The HZM 810 Profi is equipped with a 0.4 m³ standard shovel. The hydraulic quick-change system with Euro mount allows attachments such as 4-in-1 blades, sweepers or pallet forks to be changed without tools. Thanks to the third and fourth hydraulic oil circuits, the use of devices with additional functions is possible without any problems in order to guarantee maximum flexibility on the construction site. Other attachments are available upon request.

Powerful drive, precise control:

A reliable 25 hp Kubota diesel engine provides the necessary power, while the high-quality hydrostatic drive from the Italian company PWG ensures gentle, precise movements. The electrically controlled reversing circuit on the joystick makes operation noticeably easier and enables efficient work in every situation.

Functionality and comfort, thought out down to the last detail:

With a tilting load of 1,600 kg and a lifting height of 2,448 mm (lower edge of the blade), the HZM 810 Profi is ideal for a wide variety of lifting and transport tasks. A complete lighting system and additional work lights ensure optimal visibility even in difficult lighting conditions, which increases safety at every location. In addition, the fully equipped cabin is equipped with a sprung seat, heating and ventilation, which significantly increases ease of use.

Quality that pays off:

HZM stands for long-lasting technology and tested safety. The 810 wheel loader meets all current CE standards and guidelines and is built for daily, intensive use. The robust construction and first-class workmanship ensure the highest level of reliability. Even under the harshest conditions. The loader also has the necessary COC documents and can therefore be street legal.

product highlights
HZM Hoflader auf dem landwirtschaftlichen Betrieb – Kompaktlader im täglichen Einsatz

High-performance engine

Delivers strong output with efficient fuel consumption

HZM Radlader Einsatzbereich Landwirtschaft – Hoflader und Teleskoplader

High-performance engine

Delivers strong output with efficient fuel consumption

HZM Radlader Baustelle – Kompaktlader für Erdarbeiten und Materialtransport

High-performance engine

Delivers strong output with efficient fuel consumption

HZM Hoflader mit Schneeschild im Winterdienst – Kommunaler Radlader

High-performance engine

Delivers strong output with efficient fuel consumption

Specifications

Performance that shows up every single day

drive

Engine:

Kubota V1505

Drive type

Hydrostat with cardan shaft (2 speed levels)

Fuel type

Diesel

20 km/h

Driving speed

18.2 kw

Performance

92.6 NM

Torque

12 V

Battery

Fill quantities & pressures

Capacity

Cooling system

Water-cooled

40 L

Fuel tank capacity

40 L

Fuel tank capacity

50 L

Hydraulic tank capacity

42 L/min

Max. hydraulic oil output

Hydraulic pressure

WEight

Weight specifications

2,300 kg

Operating weight

1,000 kg

Max. rated load ad input

Hydrostat with cardan shaft (2 speed levels)

Driving speed

20 km/h

Machine Weight

20 km/h

Driving speed

20 km/h

Driving speed

20 km/h

Driving speed

20 km/h

Driving speed

20 km/h

Driving speed

20 km/h

Driving speed

20 km/h

Driving speed

20 km/h

Driving speed

20 km/h

Driving speed

20 km/h

Driving speed

20 km/h

Driving speed

20 km/h

Driving speed

Measurements

1.588 mm

Inside turning radius

3,067 mm

Outside turning radius

2,448 mm

Lifting height (bottom edge of bucket)

0.4 m³

Standard bucket volume

1,595 mm

Wheelbase

4,091 mm

Total length

4,091 mm

Total width

2,279 mm

Total height

1,190 mm

Track width

equipment

Scope of delivery

HZM 810 incl. standard bucket

COC document for road registration

Invoice with VAT shown

Germany-wide warranty

German operating instructions

  • Continuous pressure function: Quick and easy control.
  • 3rd & 4th hydraulic circuits: For a wide range of attachments.
  • Float position: Enables ground leveling.
  • COC document (Certificate of Conformity).
  • Additional work lights.
  • Euro hitch with hydraulic quick coupler.
  • Hydraulic oil cooler: Suitable for continuous operation.
  • Suspended seat and adjustable steering wheel.
  • Lockable doors.
  • Reversing camera.
  • Windscreen wipers with washer system.
  • Heating and ventilation.
  • Electronic joystick: Precise control of the drive.
  • Differential lock: Engageable at the touch of a button.
  • Hand throttle.
  • Autodrive (cruise control).

Additional Option:

  • Control of the 3rd and 4th hydraulic circuits directly via the joystick.
lifting capacity

1.588 mm

Inside turning radius

3,067 mm

Outside turning radius

2,448 mm

Lifting height (bottom edge of bucket)

0.4 m³

Standard bucket volume

1,595 mm

Wheelbase

4,091 mm

Total length

4,091 mm

Total width

2,279 mm

Total height

1,190 mm

Track width

Configurations

Customize your wheel loader

Heavy lifting on building sites. Moves materials fast. Handles the load without slowing down.

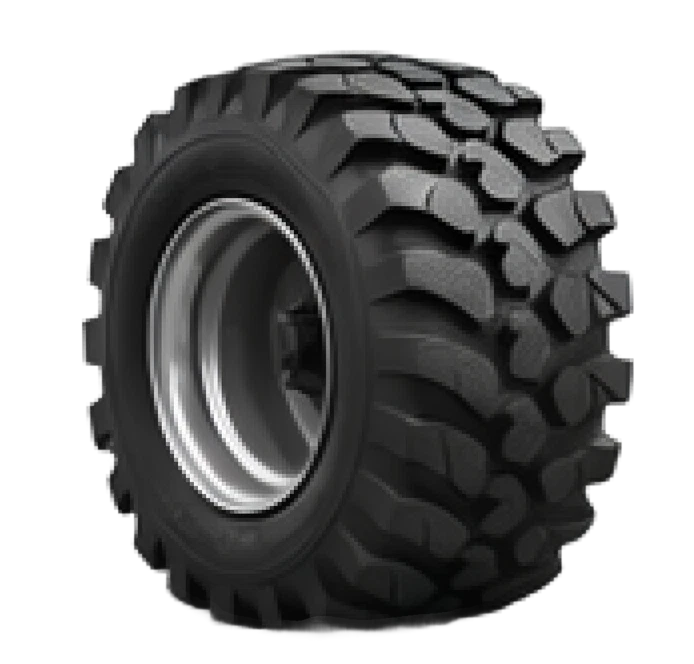

Tires
Standard Tires
General-purpose use
Cab
With cab
Closed-purpose use
HZM Hoflader kaufen – Kompaktlader für Landwirtschaft und Hof
Need a different configuration?

For custom requirements or additional options, please Contact Us.

Proven

Numbers that speak for themselves

HZM machines work harder and longer than the competition. These are the facts that matter on the job site.

15,000+
Machines in active use
8,500
Machines in active use
products

Our products

HZM 825-T Profi Teleskoplader kaufen – 75 PS Yunnei 4.541 mm Hubhöhe ab 35.990 €

HZM 825-T Profi

35,990€

Engine power

55 kW / 75 PS

Tipping load

5.500 kg

Operating weight

1,0 m³

HZM 816-T Profi Teleskoplader kaufen – 61 PS Yunnei Bosch Common-Rail ab 33.990 €

HZM 816-T Profi

33,990€

Engine power

45 kW / 61 PS

Tipping load

4.200 kg

Operating weight

0,8 m³

HZM 811-T Profi Teleskoplader kaufen – 25 PS Yunnei Bosch-Elektronik ab 24.990 €

HZM 811-T Profi

24,990€

Engine power

18,8 kW / 25 PS

Tipping load

2.960 kg - 3.160 kg

Operating weight

0,5 m³

HZM 810-T Profi Teleskoplader kaufen – 25 PS Kubota V1505 Autodrive ab 29.990 €

HZM 810-T Profi

29,990€

Engine power

18,3 kW / 25 PS

Tipping load

2.500 kg - 2.700 kg

Operating weight

0,4 m³

HZM 825 Profi Radlader kaufen – 75 PS Yunnei Bosch Common-Rail ab 33.990 €

HZM 825 Profi

33,990€

Engine power

55 kW / 75 PS

Tipping load

5.000 kg

Operating weight

1,0 m³

HZM 816 Profi Radlader kaufen – 65 PS Yunnei Bosch Common-Rail ab 31.990 €

HZM 816 Profi

31,990€

Engine power

47,4 kW / 65 PS

Tipping load

4.000 kg

Operating weight

0,6 m³

HZM 811 Profi Kompaktlader kaufen – 25 PS Yunnei Profi-Joystick ab 22.990 €

HZM 811 Profi

22,990€

Engine power

18,8 kW / 25 PS

Tipping load

2.800 kg - 3.000 kg

Operating weight

0,5 m³

HZM 810 Profi Kompaktlader kaufen – Kubota 25 PS mit Vollkabine

HZM 810 Profi

27.990 €

Engine power

18,2 KW / 25 PS

Tipping load

2.300 kg - 2.500 kg

Operating weight

0,4 m³

HZM 807 Profi Hoflader kaufen – kompakter Knicklenker-Radlader 25 PS Perkins

HZM 807 Profi

18.990€

Engine power

18,4KW / 25PS

Tipping load

1.520 kg

Operating weight

0,3 m³
